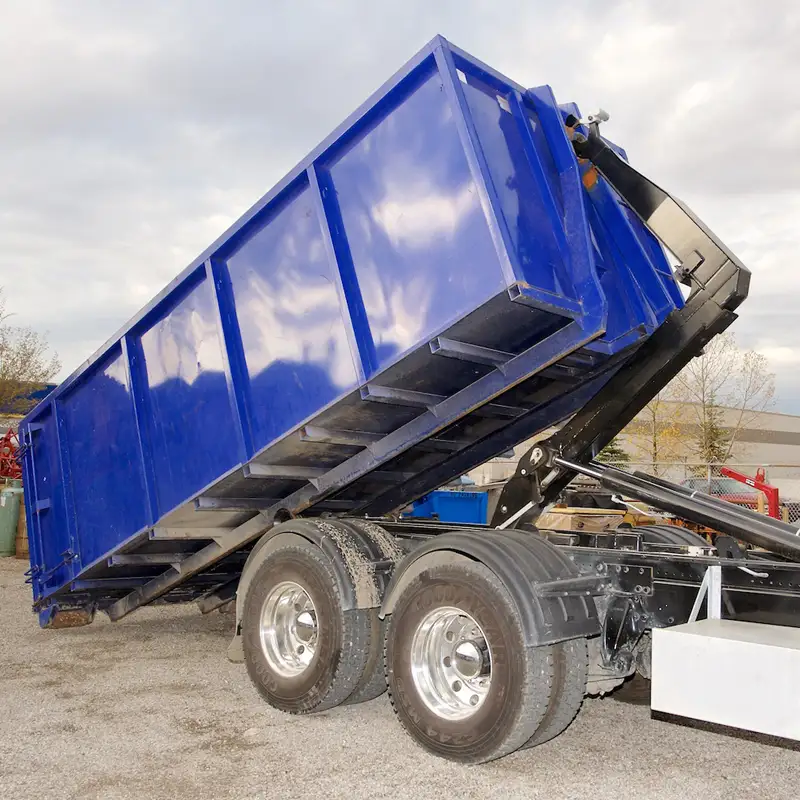

XR10 TRUCK-MOUNTED HOOKLIFT

Ten tonnes of productivity

What can you load, haul and dump with the 10-tonne capacity MultiLift XR10 slide-model hooklift series? Just about anything. Four cubic yards of stone or concrete. Fourteen cubic yards of uncompacted residential or industrial waste. Five 10-yard rolls. 2200 lbs. of drywall. 40-yard containers. Even the weight of 10 compact cars, if you're so inclined. Five available XR10 models (XR10.32, XR10.36, XR10.41, XR10.46, and XR10.51) handle demountable bodies ranging from 11 to 20 ft, and are so versatile that one truck can serve as an entire fleet. Or opt for a manually-adjustable 54 to 62-inch dual-height hook.

Unique in the industry and uniquely Multilift

Multilift XR10 hooklifts make it easy to be profitable. Its wide opening sliding 'S’-hook technology has a centred square profile boom that is unique in the industry—and uniquely Multilift. The technology is quiet. It allows for quick container changes, providing versatility, increased payload, and improved stability thanks to a single-plate sub-frame, an asymmetric lifting frame, and a smart electrical control box with rocker panels for use both inside and outside the cab.

Multilift XR10 models make it easy to be safe and profitable

Unmatched performance, payload, productivity and profit. And, of course, uncompromised safety for the operator, equipment, load and people around you. The Multilift XR10 makes it all incredibly easy, regardless of the operator's experience.

The XR10 features a plumbed, pre-mounted three-spool electric control valve and advanced tipping. Twin main-lifting cylinders and booster cylinders increase dumping strength—a bonus with a 50-degree dumping angle. Safety features include a mechanical frame lock that secures the middle and rear frames during tipping, a safety interlock that prevents the hook arm from being extended while dumping, a hook safety latch, a tipping lock mechanism, and optimal visibility – even through the rear cab window. Mechanical locks with PTO enable automatic operation with a finishing plate. Holding valves are mounted directly on the main and hook arm cylinders to protect against load drop and hose failure.

Durability makes the Multilift XR10 hooklift reliable and inexpensive to own

Multilift XR10 hooklifts are durable and virtually maintenance-free. They come fully assembled with a separate 7 imperial gallon oil tank, an in-tank return filter for frame mounting, and 10 mounting plates. A Multilift XR10 truck-mounted hooklift is a reliable partner that is reliably there for you every day, always looks great in an industry where ‘tough’ is the norm and has the highest resale value in the industry when the time comes for an upgrade. Multilifts are the world’s best-engineered, most reliable hooklifts, Canada’s leading brand and set the benchmark for quality as the Canadian Industry Standard (CIS)—probably because there is nothing else like them. Plus, they have the added benefit of the knowledge, experience and support of ML-Truck Equipment and its broad coverage across BC.
